ABA 3 Layer
Multi-layer Blown Film Machine

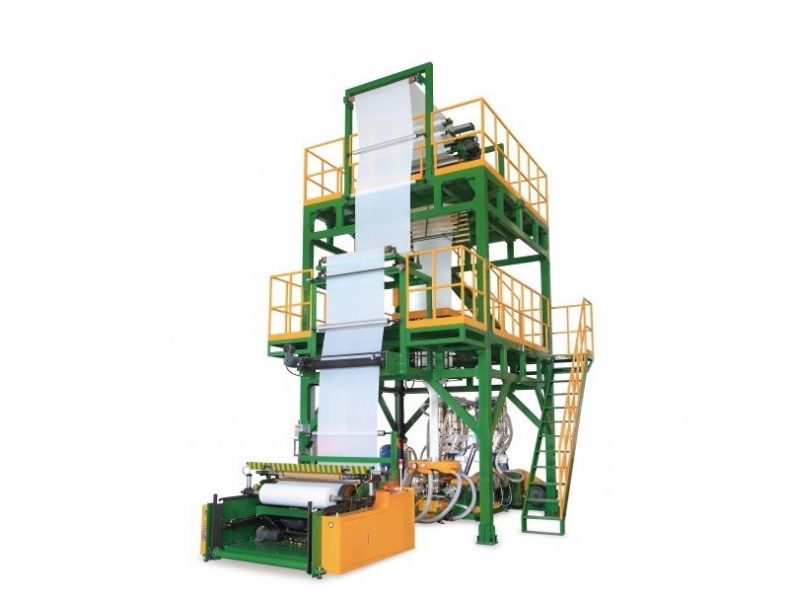

CE45-65TT A/B/A Three Layer Blown Film Machine

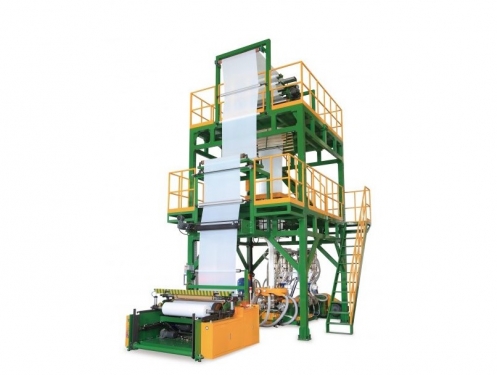

CE45-65TT A/B/A Three Layer Blown Film Machine
 |
|
ABA 3 Layer Co-Extrusion Blown Film Machine Why ABA Co-Extruder? Would you like to save the raw material cost and improve final product quality with co-extruder line and initiate your investment into co-extrusion system? Avita ABA Three-Layer Co-Extrusion Blown Film Machine with 360 degree Oscillating Tower might be the solution for you to get in this field. The main advantage of ABA Blown Film Co-Extruder is it significantly reduces the cost of raw material by using high percentage CaCo3 or recycled material in Central Layer (B) and Virgin Material in Outer and Inner (A+A) Layer. While keep the film quality at a high level it also applies to environmental friendly.   The main advantage of ABA Blown Film Co-Extruder is it significantly reduces the cost of raw material by using high percentage CaCo3 or recycled material in Central Layer (B) and Virgin Material in Outer and Inner (A+A) Layer. While keep the film quality at a high level it also applies to environmental friendly. Avita precisely machined spiral die with high efficiency air ring can ensure products quality with better thickness uniformity of film to increase your benefit. One-Station Fully Automatic Winder can automatically discharge of the wound bobbin by means of a hydraulic unloading device, with dancing roll for automatic check and tension control.  Features: * Horizontal Oscillating Haul off with PLC control. * Motorized open/close, up/down Bubble Cage. * Manual screen changer. * Groove Feed Barrel (65mm) and cooling jacket. * Melt pressure Gauge. * Unique design A/B/A three layer Die and HDPE Air Ring. |
|
 |
|

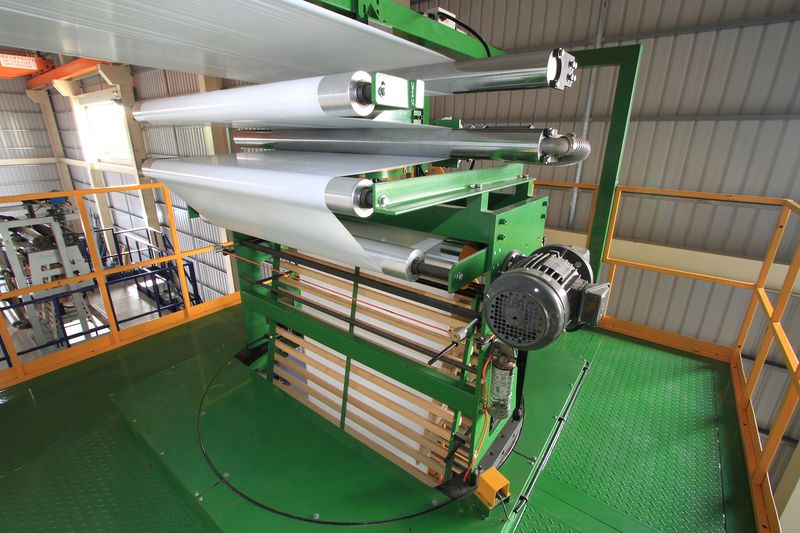

| Oscillating Haul-Off | ABA Co-Extruder, Die and Air Ring |
|
Optional devices: * Chiller and Chill Air Box for Air Ring. * Gravimetric blender dosing system. * LDPE/LLDPE A/B/A Die and Air Ring. * Slitting knife. * Yield control management system. * Thickness measurement system. o BF-A A-frame thickness measurement system. o BF-E edge thickness measurement system. o BF-S scanner thickness measurement system. * Automatic Back-to-Back Surface Winder. * 250 kg Mixer |
 |
|

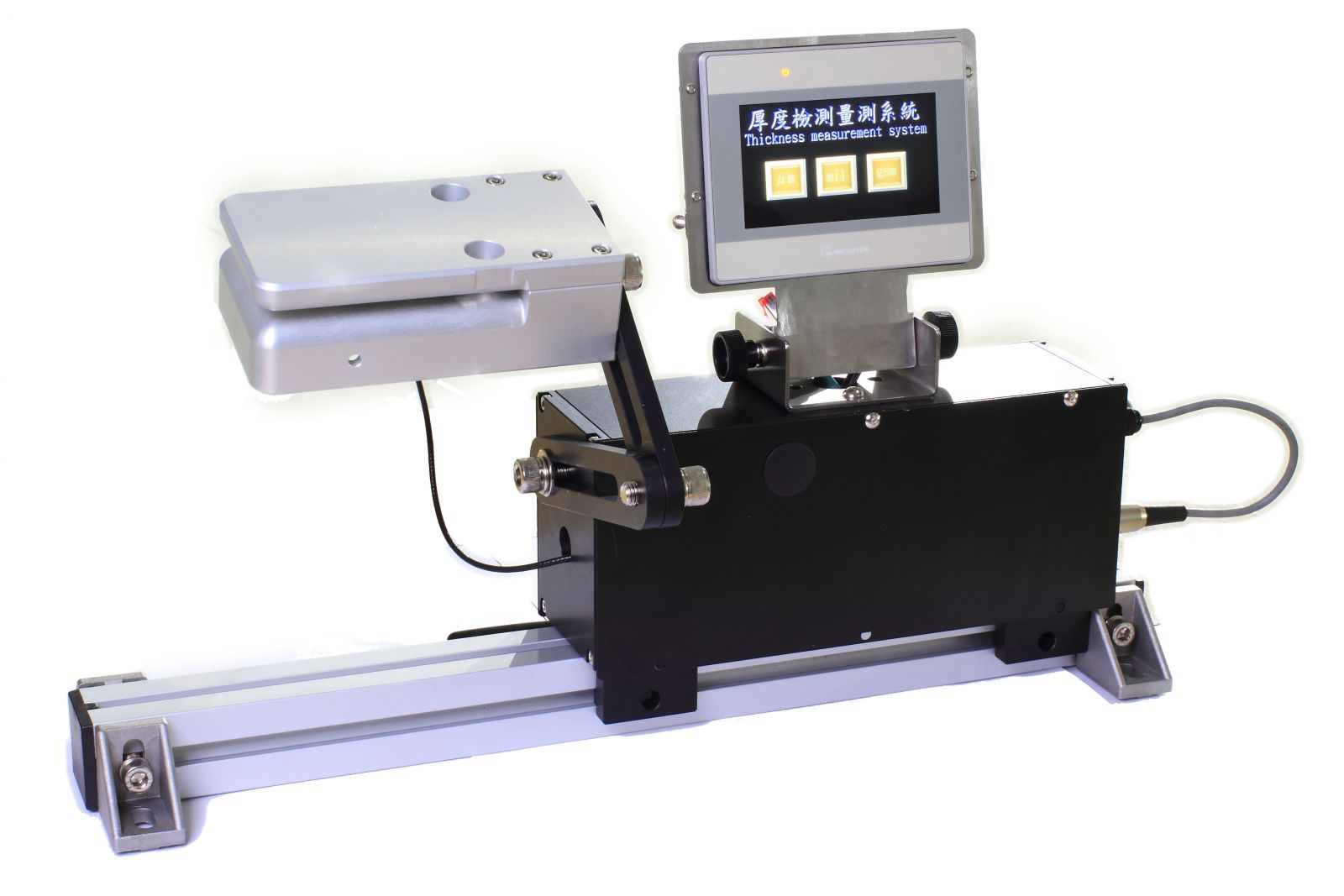

Real Time Edge Thickness Measurement Device |
| Model | Suitable Material | A/B/A Screw Dia. | Max. Film Width | Max. Output | Screw L/D Ratio | Main Motor(w/inverter) |
| CE45/65TT |
HDPE/LDPE/ LLDPE/Recycle PE |
A: Ø45 , B: Ø65 | 1200mm | 200KG/Hr | A: 28:1,B:30:1 | A: 25HP, B:60HP |
| CE45/75TT | A: Ø45 , B: Ø75 | 1200mm | 250KG/Hr | A: 28:1,B:30:1 | A: 25HP, B:75HP | |
| CE55/55TT | A: Ø55 , B: Ø55 | 1400mm | 160KG/Hr | A: 30:1,B:30:1 | A: 40HP, B:40HP | |
| CE55/65TT | A: Ø65 , B: Ø65 | 1600mm | 250KG/Hr | A: 30:1,B:30:1 | A: 60HP, B:60HP | |
| CE55/75TT | A: Ø55 , B: Ø75 | 1600mm | 270KG/Hr | A: 30:1,B:30:1 | A: 40HP, B:75HP |
Using Co-Extrusion Blown Film Machine can improve the film strength, so you will get a cost saving and eco-friendly product than mono layer extruder.
Contact us for more information! Please click the video link below for your reference.
