ABC 3 Layer
Multi-layer Blown Film Machine

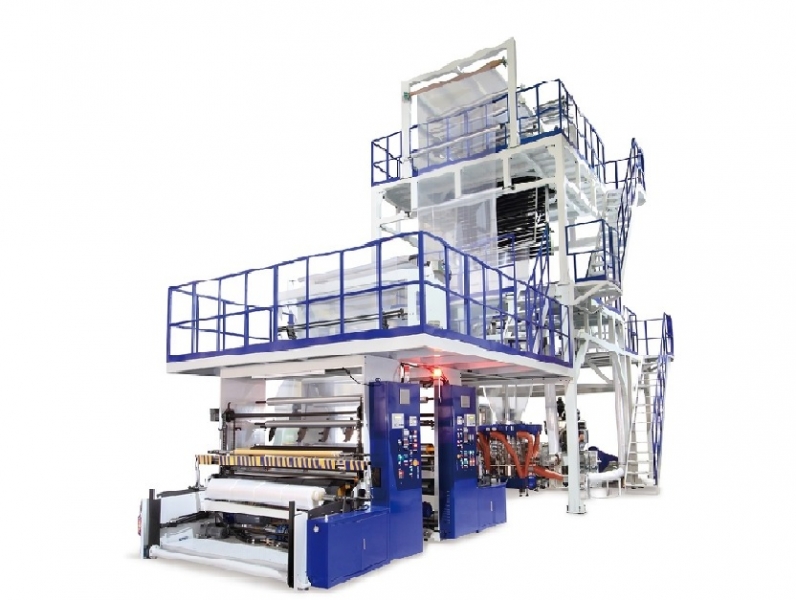

CE55/90/55TT A/B/C Three Layer Blown Film Machine

* Horizontal Oscillating Haul off with PLC control.
* Teflon Rolls, Remote control motorized open/close, up/down Bubble Cage.
* Bimetallic barrel with replaceable groove section and cooling jacket
* Melt pressure/temperature probes and display Include rapture disk.

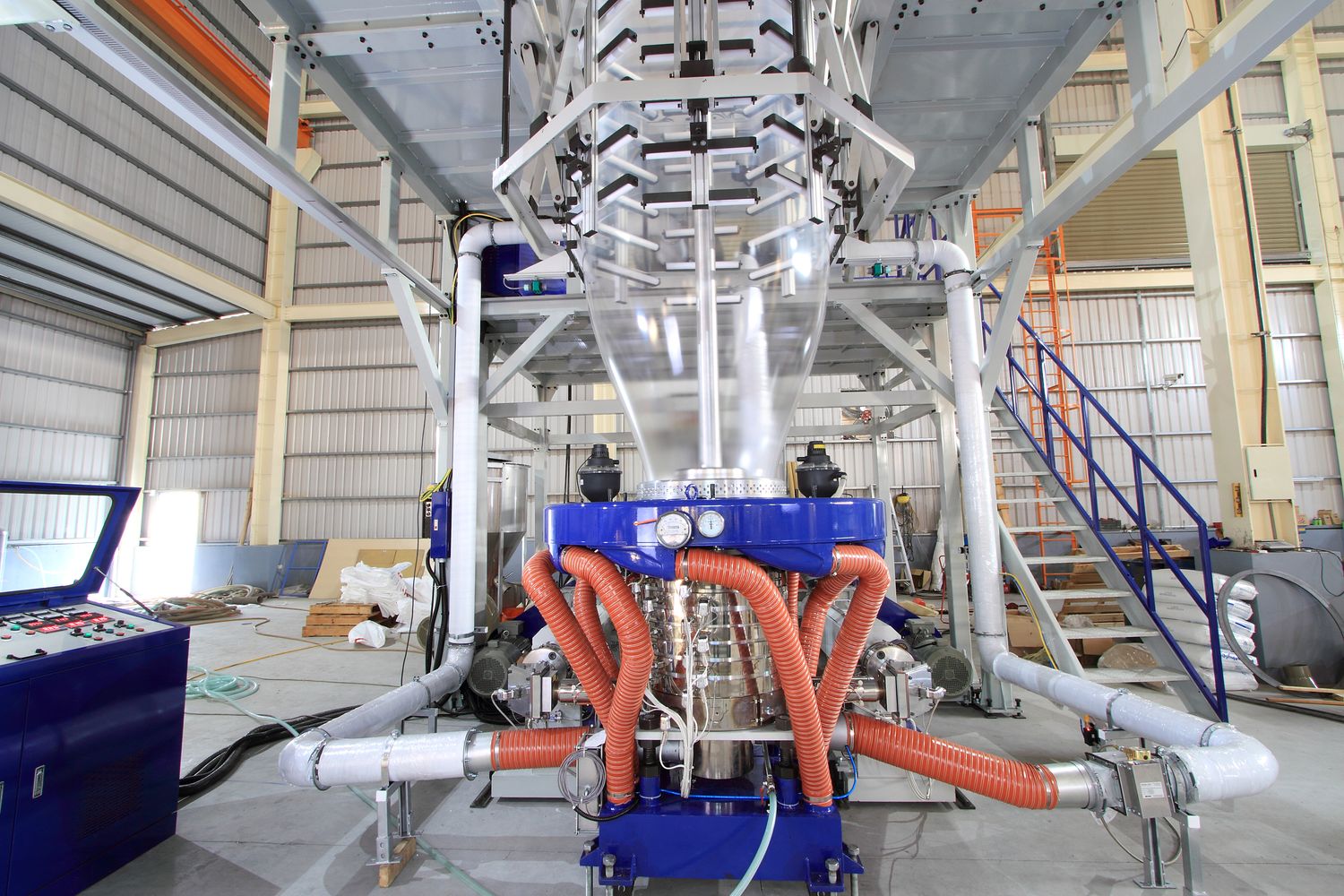

* 450mm A/B/C three layer IBC Ready Die and Air Ring.

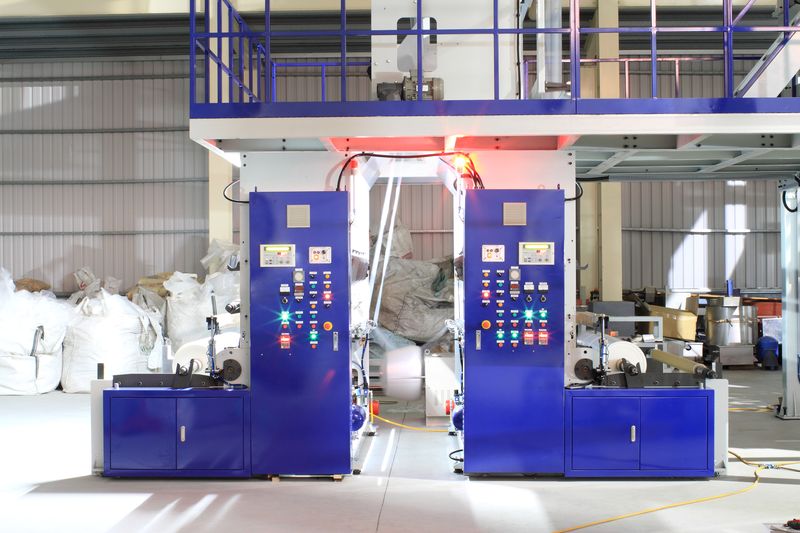

* Automatic Magazine winding shaft loading,Back-to-Back Surface Winder,
   with loadcell and PLC control and slitting and edge open system.

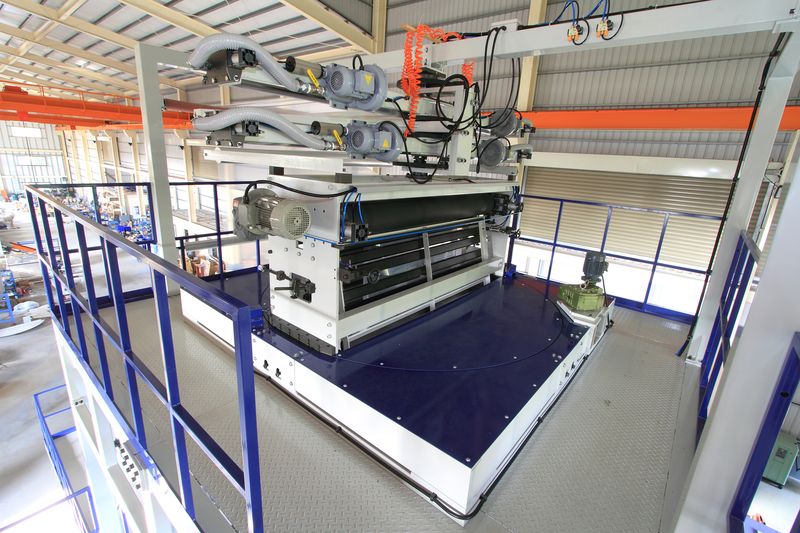

Back to Back Double Face Auto Winder IBC and Width Control System   Oscillating Haul-Off

Optional devices:
*  IBC & automatic width control and Blower.
*  Chiller and Chilling Air Box for IBC and Air Ring.
*  Gravimetric blender dosing system.
*  Yield control management system.
*  Real Time Thickness measurement system.
*  BF-A A-frame thickness measurement system.
*  BF-E edge thickness measurement system.
*  BF-S scanner thickness measurement system.
*  Automatic Profile thickness control Air Ring.
*  PIB Gear Pumps.

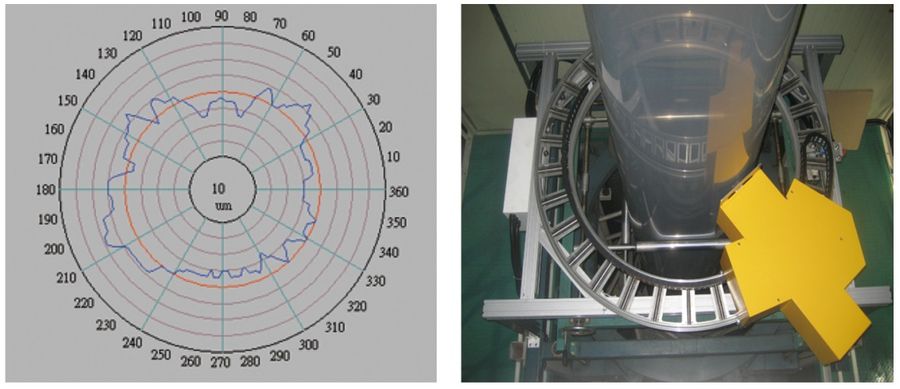

                                      Auto Gauge Inspection & Control System
Model Suitable Material A/B/C Screw Dia. Max. Film Width    Max. Output     Screw L/D Ratio Main Motor(w/inverter)


 A: Ø45,B: Ø 45,C:Ø45 1200mm 150KG/Hr


CE55/65/55TT A: Ø55,B: Ø 65,C:Ø55 1600mm 300KG/Hr A:40HP,B:60HP,C:40HP
CE55/75/55TT A: Ø55,B: Ø 75,C:Ø55 1600mm 350KG/Hr A:40HP,B:100HP,C:40HP
CE55/90/55TT A: Ø55,B: Ø 90,C:Ø55 2000mm 400KG/Hr A:40HP,B:150HP,C:40HP
CE65/90/65TT A: Ø65,B: Ø 65,C:Ø65 3000mm 500KG/Hr A:75HP,B:150HP,C:75HP

Others: Contact us for more information about 5,7,8,11 layer co-extrusion line.
