Mini Size

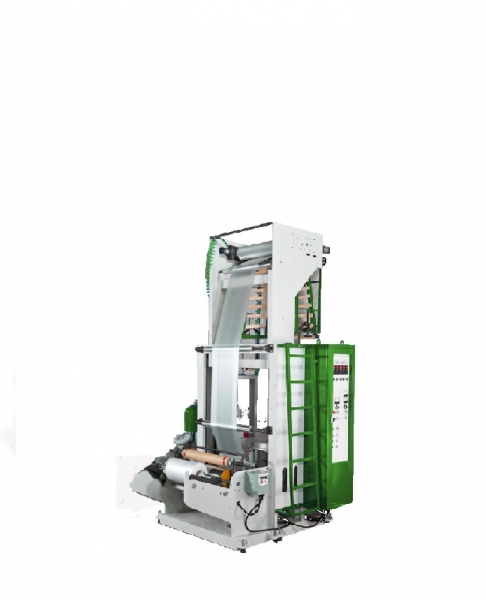

Narrow Width One-Piece-Platform Blown Film Machine

EB30MI ~ EB45MI



Features:
* Single Platform design for saving space.
* Extra width on this class blown film.
* Inverter main drive for energy saving.
* Detached winder can be in-line with printing press.
* Simple construction with easy operation.

Optional Devices:
Surface Treater, Auto-loader, HDPE, LDPE Extra Die and
Air ring, Bubble Inflate Control, Oscillating Haul off.

Model Suitable Material Screw Dia. Max. Film Width Max. Output Screw L/D Ratio Main Motor(w/Inverter)
EB30MI HDPE/LDPE/
LLDPE/MDPE/EVA
Ø30 300mm 20KG/Hr 28:1 7.5HP
EB40MI Ø42 500mm 40KG/Hr 28:1 15HP
EB45MI Ø45 700mm 50KG/Hr 30:1 20HP



EB30MI / High Speed Mini Blown Film Machine
