Medium Size
Medium Width Mono Layer Blown Film Machine
EH45T ~ EH65T
EH45T ~ EH65T
 |
|

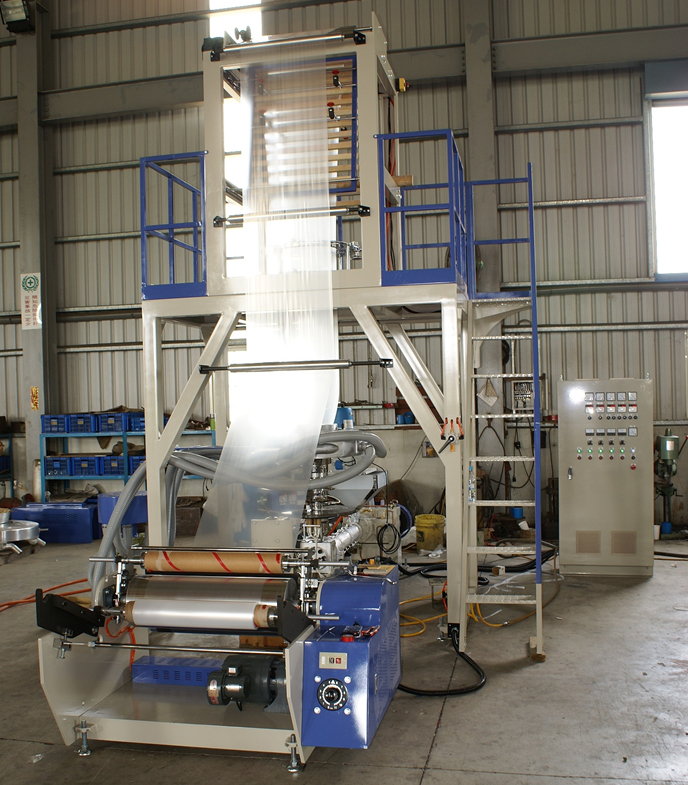

High Quality Mono Layer Blown Film Machine AVITA MACHINERY COMPANY has designed a series of high-quality Mono Layer Blown Film Machines which are assembled by unique designed extruders for mass production, and offered to the market at a very attractive price. The model provides a good solution for not only economic price but excellent quality film. Suitable for general packaging products such as T-shirt bags, supermarket bags, flat bags and many others.  screw size 65mm   screw size 55mm 55mm screw size with auto winder  screw size 45mm  screw size 42mm in line with 1 color printer  screw size 30mm Please click the video link below for your reference. https://www.youtube.com/watch?v=sqpy25vZY3M (65mm extruder in line with shuttle type bag making machine) https://www.youtube.com/watch?v=j-E5JUY9yXc (High Speed 55mm Blown Film Machine) https://www.youtube.com/watch?v=PCB_Aka5Teg (45mm extruder in line with 2 color printing machine) https://www.youtube.com/watch?v=4RefETNcit8 (30mm extruder ) https://www.youtube.com/watch?v=DVShB20RfM8 (42mm extruder in-line with 1 color Printer) Features: * Advanced Die and Screw Design for high output and reliable production quality. * Inverter Drive for energy saving and convenient operation. * Complete HDPE, LDPE and LLDPE Die, Air Ring and Screws to be chosen to fit different material. * An economical method for producing films. * Adjustable tower height. * Simple construction with easy operation. |
|
Optional Auxiliary devices: Embossing roller, Auto-loader, Manual screen changer, Dual Layer Die, Surface treater,Melt and temperature meter, Auto surface winder upgrade, Face-to-face rewind, Rotary Dieand Air Ring, Edge guide, Chiller air box, Oscillating Haul off. |
.jpg) |
|

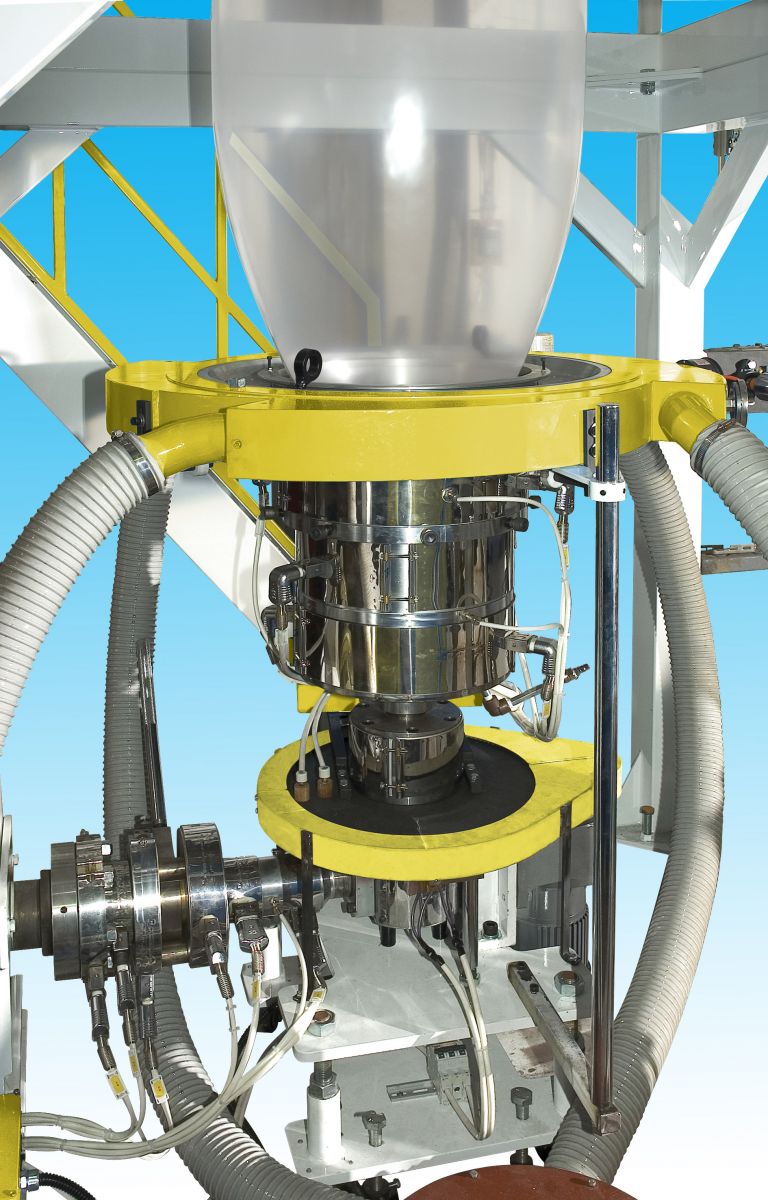

Die & Air Ring with Rotary Device |
|
| Model | Suitable Material | Screw Dia. | Max. Film Width | Max. output | Screw L/D Ratio | Main Motor(w/Inverter) |
| EH45T |
HDPE/LDPE/
LLDPE/MDPE/EVA
|
Ø45 | 700mm | 60KG/Hr | 30:1 | 30HP |
| EH55T | Ø55 | 900mm | 100KG/Hr | 30:1 | 40HP | |
| EH65T | Ø65 | 1200mm | 150KG/Hr | 30:1 | 60HP |
