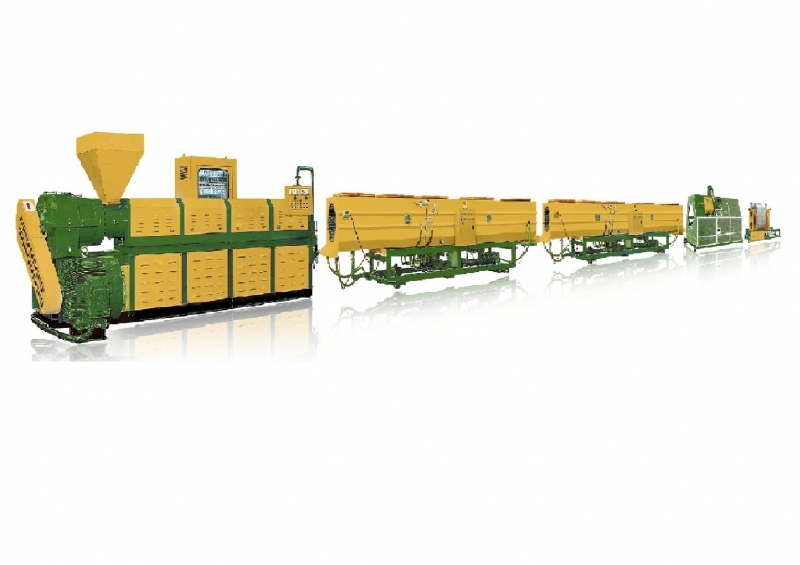

PP/PE/PPR/ABS/PPR Single Screw Pipe Extrusion Line

PVC-100PP, PVC-130PP



Features:
* Materials and applications for PVC/ PE/ PP/ ABS/ PPR Pipe etc.
* Low resistance to melt flow to avoid a negative influence on the screw mixing action
* Pipe thickness uniformity, reduced thickness of the welding.

Model	Extruder Type	Screw Dia.	Max. Output	Driving Motor	Power Reqired
PVC-100PP	Single Screw	100mm	350KG/Hr	AC 150HP	120KW
PVC-130PP	Single Screw	130mm	500KG/Hr	AC 250HP	210KW

-------------------------------------------------------------------------------------------------------------------

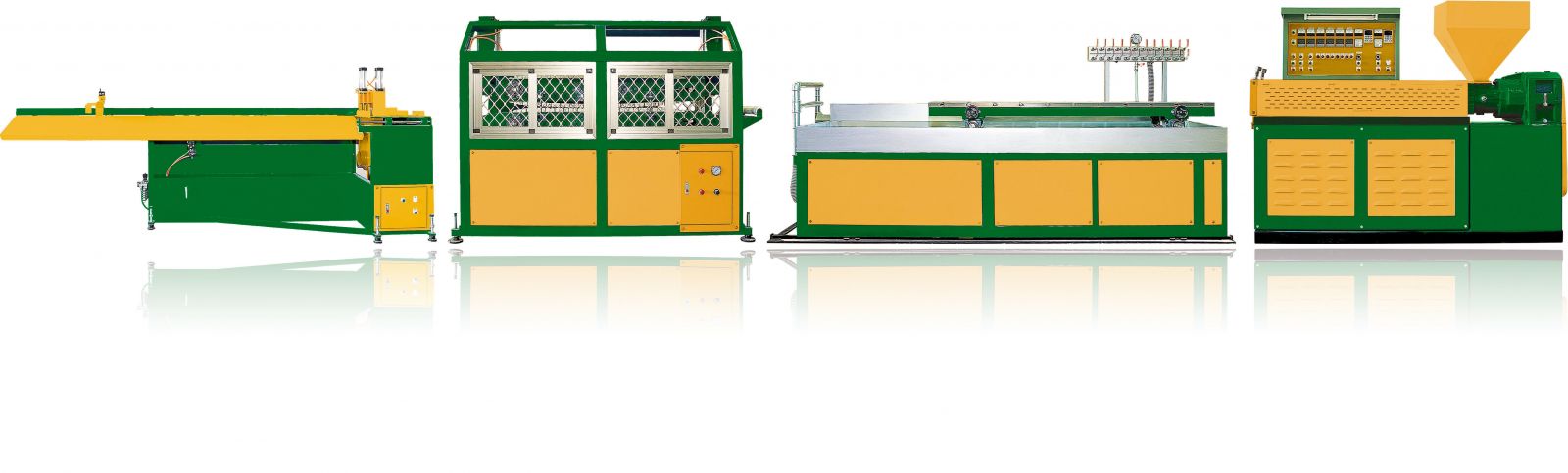

Twin Screw PVC Rigid Pipe Extrusion Line

PVC-100TP, PVC-130TP





Features:
* Twin screw PVC rigid pipe extruder (Two Pipes) manufactures PVC pipes in different
      measurements and hardnesses. These can be designed to match up with the end
      usage demands like agricultural & constructional plumbing, water supply, for drains
      and others.
* Twin Screw Pipes Extruders utilizes the latest technology to successfully handle a wide
     range of plastic products.
* Extruders come in extensive range of extruders with screw diameters varying between
     from 75mm to 130mm.

Model	Extruder Type	Screw Dia.	Max. Output	Driving Motor	Power Required
PVC-100TP	Twin Screw	100mm x 2	600KG/Hr	AC 60HP	95KW
PVC-130TP	Twin Screw	130mm x 2	950KG/Hr	AC 125HP	205KW
