T-Shirt Bag Making Machine

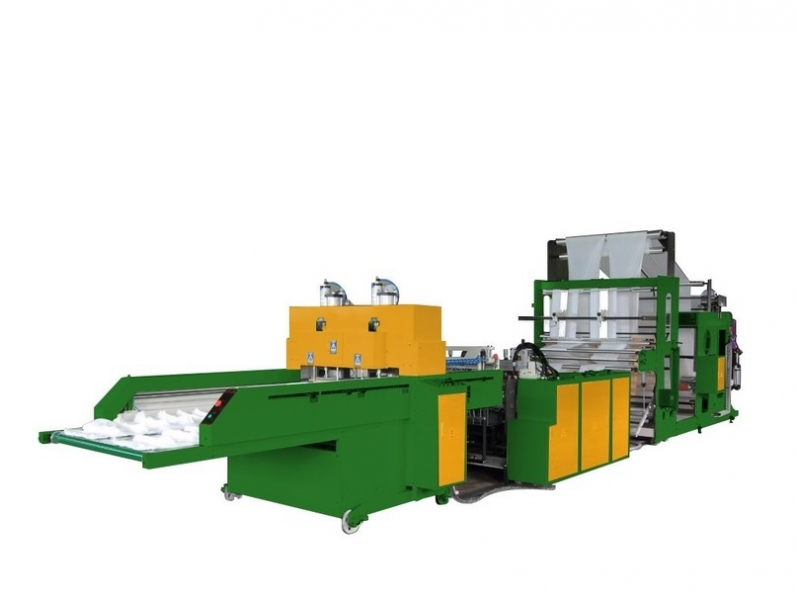

Fully Automatic Heavy Duty T-Shirt Bag Making Machine
With Hot Slit-seal, Post Gusset and Auto Punching Unit


TP360P-SP2, TP330P-SP3




Hot Slit-Seal Device   Edge Guiding Unit   Post Gusset Unit



High Speed Servo-driven T-shirt Bag Making Machine with Auto Punching Device
TP450P, TP360P-2H

Durable Sealing & Cutting Device                    EPC

Features:
* Hydraulic lift unwind unit to make rolls loading much easily. AC motor driving press to maintain
   even tension of the film during production.
* Precise turn-over sealing and cutting section for easy cleaning and maintenance.
* Automatic malfunction detection – when the abnormalities occur, the machine will stop
   immediately and an error code will be displayed for warning (Ex: out of film, overlapped
   film, temperature low and air volume low) for prevent waste the film.
* User-friendly HMI for easy operation.
* Swing blocking system to ensure the bags will not be sealed together.
* Collecting table folding device folds the blocked bags in half for prevent waste the film.
* Optional Auto-Packing system for packing the final production.


Model Thickness of Film Max. Bag Width Bag Length Max. Speed Auto Punching Device
TP360P-SP2



0.008-0.035mm(HDPE)
0.02-0.1mm(LDPE)





360mm x 2

250-680mm





230cycles/min x 2 2
TP330P-SP3 330mm x 3 230cycles/min x 3 3
TP360P-2H 360mm x 2 300cycles/min x 2 2
TP360P-2 360mm x 2 250cycles/min x 2 2
TP450P-2 450mm x 2 250cycles/min x 2 2
TP450P 450mm x 1 250cycles/min x 1 1




   TP360P-2 / HIGH SPEED 2-LINE T-SHIRT BAG MAKING MACHINE WITH AUTO
                      PUNCHING SYSTEM




TP360P-SP2 / HEAVY DUTY T-SHIRT BAG MAKING MAHINE WITH
        HOT SLIT-SEAL,POST GUSSET AND AUTO PUNCHING SYST
