Shuttle Type Machine
Servo-driven Shuttle Type Bag Making Machine
SP750~SP2500
SP750~SP2500
 |
Servo-driven Shurrle Bag Making Machine
SP750~SP2500
Features:

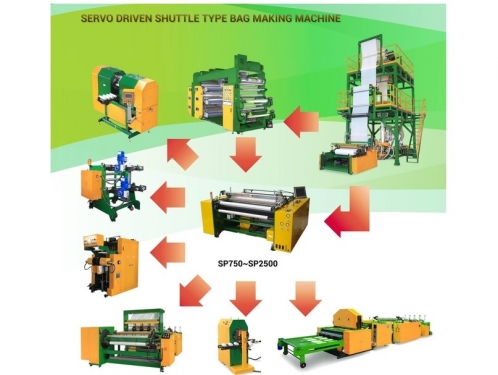

Reliable & flexible which could be in-line with extruder, printing press, simple winder, core & core-less winder, separator, punching device… etc. to make different products. Such as draw string bags, produce bags, core & coreless bag on roll and garbage bags.
4-LANE SHUTTLE TYPE BAG MAKING MACHINE WITH MULTIPLE FOLDING SYSTEM
SP750~SP2500
 |
Features:
Reliable & flexible which could be in-line with extruder, printing press, simple winder, core & core-less winder, separator, punching device… etc. to make different products. Such as draw string bags, produce bags, core & coreless bag on roll and garbage bags.
| Model | SP-750 | SP-1000 | SP-1250 | SP-1500 | SP-1750 | SP-2000 | SP-2250 | SP-2500 |
| Bag Width(Max.) | 700mm | 950mm | 1200mm | 1450mm | 1700mm | 1950mm | 2200mm | 2450mm |
| Bag Length | 200-3000mm | |||||||
| Thickness of Film | 0.008-0.1mm | |||||||
| Max. Speed | 120M/min | |||||||
-------------------------------------------------------------------------------------------------------------------
4-Lanes Shuttle Type Star-seal Garbage Bag Making Machine with Multiple Folding System
SF1250-4
00.jpg) |
Features:
* Machine Specially Designed with Four Servo System Allows Long Film Accuracy Delivery
and Sealing Time Extension.
* Precise Electric Dwell Time Control Ensures Consistent Sealing Independent of Line Speed Variation.
| Model | Suitable Material | Product Width | Max. Bag Length | Thickness | Max. Speed |
| SF-1250-4 | HDPE,LDPE,LLDPE | 200-1200mm | 9000mm | 0.008-0.1mm | 120M/min |
4-LANE SHUTTLE TYPE BAG MAKING MACHINE WITH MULTIPLE FOLDING SYSTEM
