Side Seal Bag

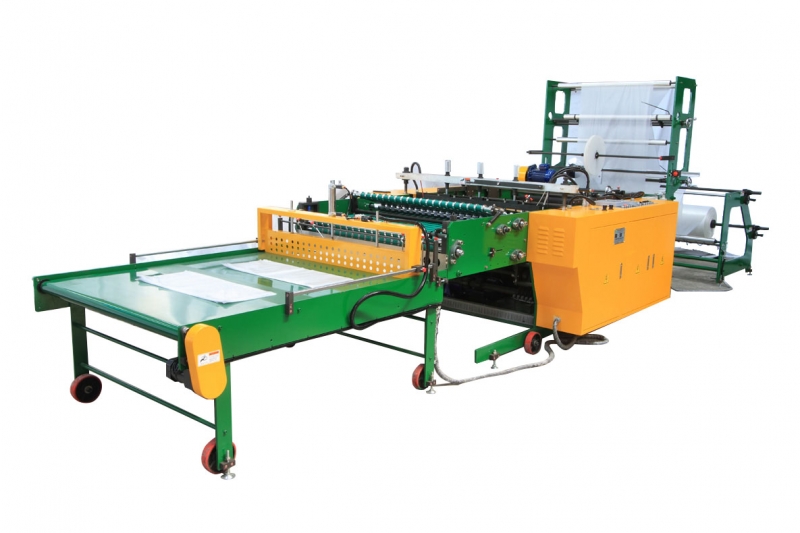

High Speed Automatic Side Seal Bag Making Machine
SB650 ~ SB1450
SB650 ~ SB1450
 |
 |
Features:
* Photo Sensor is included.
* Speed is up to 300 cycles/min.
* Thick gauge machine frame to ensure the machine is steady in high speed operation.
* HMI User Friendly Touch Screen For Easy operation.
Optional Device:
* Adhesive Tape dispenser
* Punching Device
* Heat Slitter
* Tri-Angle Folding Device
* EPC
* Magnetic Powder Breaker
* Motor Driven and auto.
| Model | Suitable Material | Bag Width | Bag Length | Thickness of Film | Max. Speed |
| SB-650 |
HDPE/LDPE/LLDPE |
25-550mm | 25-650mm |
HDPE: 0.008-0.04mm LDPE: 0.012-0.1mm |
300 cycles/min |
| SB-750 | 80-700mm | 80-750mm | 250 cycles/min | ||
| SB-1000 | 80-900mm | 80-1000mm | 200 cycles/min | ||
| SB-1200 | 80-1100mm | 80-1200mm | 180 cycles/min | ||
| SB-1450 | 80-1300mm | 80-1450mm | 180 cycles/min |
