Heavy Duty Bag
Heavy Gauge Fly-Cutting Bottom Seal Bag Making Machine
 |
Heavy Gauge Wave Shape Fly-Cutting Bottom Seal
Bag Making Machine
This machine including a very special design of wave shape
fly‐cutting system and a double heater designed for cutting &
sealing the heavy gauge film /or very thick film even with gussets.
The flying knife adopts the mode of moving left and right.
The advantages of this structure are that the sealing is smooth,
the blade has a long service life, it is more stable for making thicker
bags.The flying knife's moving width can be adjusted according to
bag width's changing.
The thickness of film as below,
For LDPE & LLDPE film is from 0.01mm to 0.2mm if with gusset the
total thickness is 0.8mm.
For HDPE film is from 0.01mm to 0.07mm if with gusset the total
thickness is 0.28mm.
The machine video link as below for you reference.
https://www.youtube.com/watch?v=H7Ch1lqlvhI
To find out more about this model or any other requirements,
please contact us!
Yours Faithfully,
David Chen/ President
Avita Machinery Co., Ltd.
Office: 4F-1 No.311 Sec.4, Zhong Xiao E. Rd., Taipei City, Taiwan
TEL: +886-2-27811938 FAX: +886-2-27810597
www.avitaplas.com
service@avitaplas.com
====================================================================================
This machine including a very special design of wave shape fly‐cutting system and
a double heater design for cutting & sealing the heavy gauge film /or very thick film
even with gussets.
The thickness of film as below :
For LDPE & LLDPE film is from 0.01mm to 0.4mm if with gusset the total thickness is 0.8mm.
For HDPE film is from 0.01mm to 0.07mm if with gusset the total thickness is 0.28mm.
Features:
* Durable Wave Shape Fly-Cutting System and Tensionless Sealing System Is Designed For Wide
And Thick Film, Even with Gussets.
* Easing to Seal and Cutting bag total thickness up to 0.8mm.
* HMI User Friendly Touch Screen For Easy operation.
Optional Device:
* Bag Auto-Collecting Conveyor with Pile-Stacking System
* Jumbo Roller Un-Winding System
* Motor Driven and auto roll lifting Unwind
* Cold Pin Holder and Punching Device
Bag Making Machine
This machine including a very special design of wave shape
fly‐cutting system and a double heater designed for cutting &
sealing the heavy gauge film /or very thick film even with gussets.
The flying knife adopts the mode of moving left and right.
The advantages of this structure are that the sealing is smooth,
the blade has a long service life, it is more stable for making thicker
bags.The flying knife's moving width can be adjusted according to
bag width's changing.
The thickness of film as below,
For LDPE & LLDPE film is from 0.01mm to 0.2mm if with gusset the
total thickness is 0.8mm.
For HDPE film is from 0.01mm to 0.07mm if with gusset the total
thickness is 0.28mm.
The machine video link as below for you reference.
https://www.youtube.com/watch?v=H7Ch1lqlvhI
To find out more about this model or any other requirements,
please contact us!
Yours Faithfully,
David Chen/ President
Avita Machinery Co., Ltd.
Office: 4F-1 No.311 Sec.4, Zhong Xiao E. Rd., Taipei City, Taiwan
TEL: +886-2-27811938 FAX: +886-2-27810597
www.avitaplas.com
service@avitaplas.com
====================================================================================
This machine including a very special design of wave shape fly‐cutting system and
a double heater design for cutting & sealing the heavy gauge film /or very thick film
even with gussets.
The thickness of film as below :
For LDPE & LLDPE film is from 0.01mm to 0.4mm if with gusset the total thickness is 0.8mm.
For HDPE film is from 0.01mm to 0.07mm if with gusset the total thickness is 0.28mm.
Features:
* Durable Wave Shape Fly-Cutting System and Tensionless Sealing System Is Designed For Wide
And Thick Film, Even with Gussets.
* Easing to Seal and Cutting bag total thickness up to 0.8mm.
* HMI User Friendly Touch Screen For Easy operation.
Optional Device:
* Bag Auto-Collecting Conveyor with Pile-Stacking System
* Jumbo Roller Un-Winding System
* Motor Driven and auto roll lifting Unwind
* Cold Pin Holder and Punching Device
| Model | Suitable Material | Max. Bag Size(W x L) | Thickness of Film | Max. Speed |
| HD-700 |
HDPE/LDPE/LLDPE |
700 x 2000mm |
LDPE:0.01-0.4mm(Single Layer Gauge) Max. Total Layer Thickness:0.8mm HDPE:0.01-0.7mm(Single Layer Gauge) |
100cycles/min |
| HD-950 | 950 x 2000mm | |||
| HD-1200 | 1200 x 2000mm | |||
| HD-1500 | 1500 x 3000mm | |||
| HD-1700 | 1700 x 3000mm | |||
| HD-1950 | 1950 x 4000mm | |||
| HD-2200 | 2200 x 4000mm | |||
| HD-2450 | 2450 x 6000mm |

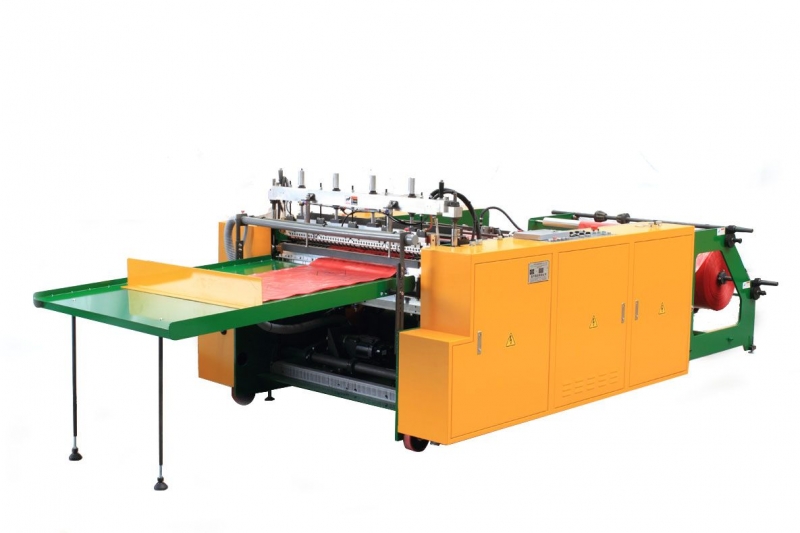

HD-1200 / Heavy Duty Bottom Seal Bag Making Machine
