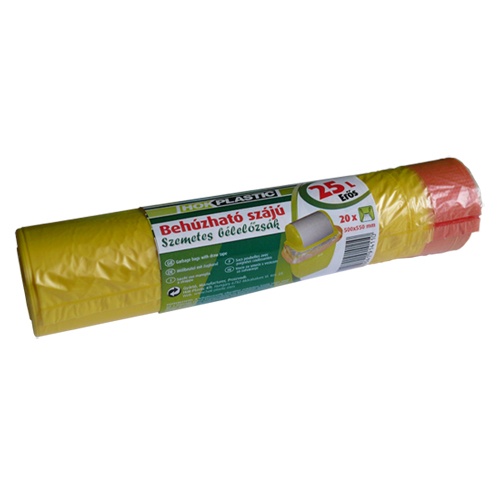

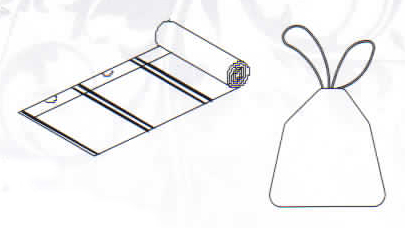

Fully Automatic Poly Draw Bags on Roll Converting System


Lower production costs Higher product performance!


Now we offer very special prices for our valuable customers.



AVITA will like to introduce to you about our Fully Automatic

Poly Draw bags on roll converting system to you. This system

uses 4 sets of servo motors to enable non-stop film feeding for

increasing production capacity. And there are integrated by electronics

and work together to produce Poly Draw bags on rolls higher product

performance.The Module is responsible for the draw tape insertion

process. It includes lip forming, draw tape insertion and lip sealing

functions. The main feature of this machine is the automatic non-stop

draw tape change over. Therefor the machine can run longer

without stopping and production is increased and more profit is made.

The poly draw bag on roll system it was Servo driven system for sealing

& cutting device and coreless rewinding system it is high accuracy for bag length.



The machine included the Shuttle type poly draw bag on roll

converting system, the Draw tape feeding system, the Triangle

folding device, the Jumbo roll unwinder and the Coreless bag

on roll rewinder.

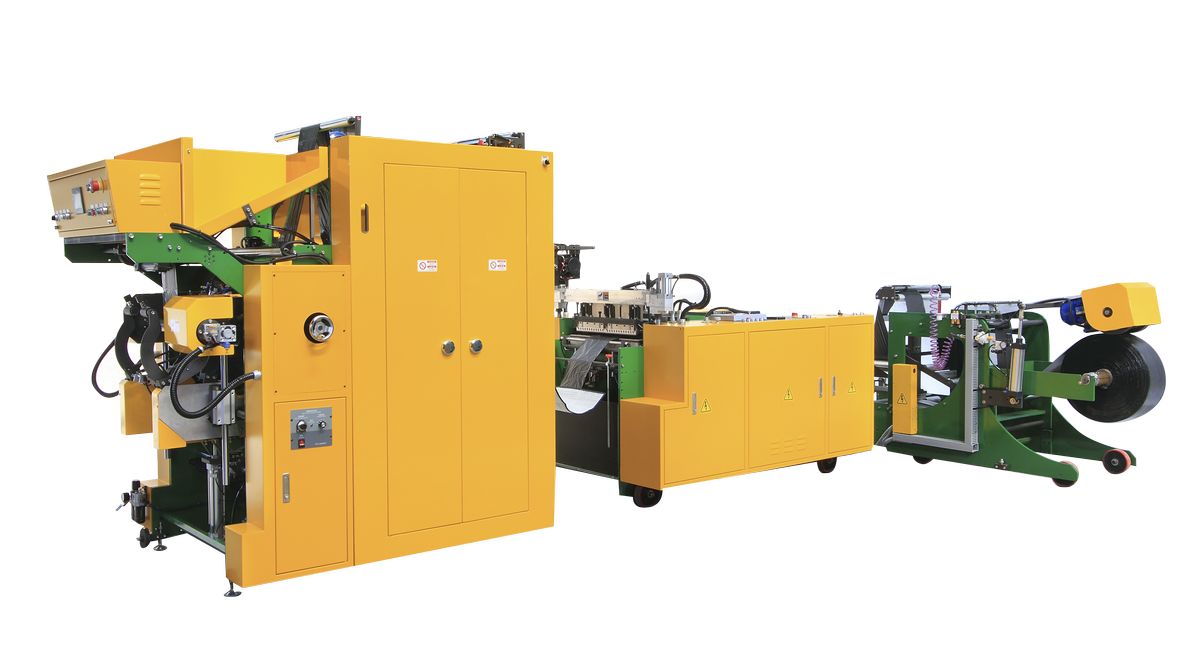

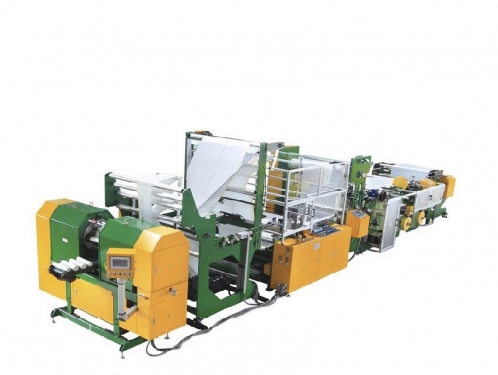

The machine photos as below:







Watching the below video for more about the machine：

https://www.youtube.com/watch?v=Ptpp7VCXDKo







Features:
* High Speed Integrated Servo-Driven System, suitable For Poly Draw, Star Seal,
   and Flat Seal Garbage Bags on roll.
* Non-stop Automatic Draw Tape Changeover.

Model	Thickness of Film	Max. Dia. x Width of Product	Max. Draw Tape Width	Max. Speed	Poly Draw Bag Size
RB1000-PD	HDPE:0.008-0.035mm LDPE:0.015-0.08mm	Ø120 x 400mm	100mm	120M/min	W:100-1000mm L:140-1000mm
RB1250-PD				100M/min	W:100-1250mm L:140-1250mm

This machine not only can produce poly draw bag also available produce normal garbage bag roll as well.

If you need the production roll is interleaved bag that the machine’s winder should be upgrade to interleaved winder.

As a result, this line is available to produce poly draw bags-on-roll effectively, efficiently and reliably.

To find out more about our poly draw bag on roll system or have any other questions, please contact us, our mail box: service@avitaplas.com  and
Our website: www.avitaplas.com







==============================================================

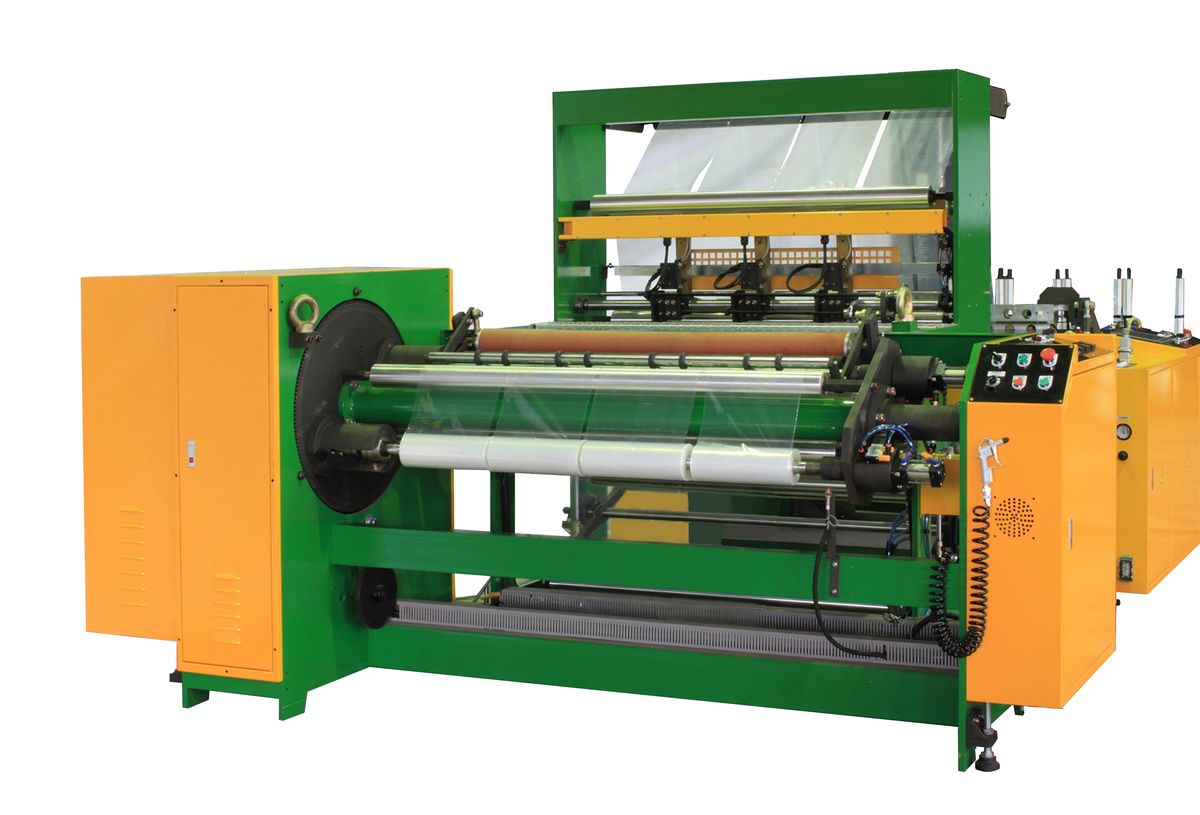

4-Lane Servo-Driven Produce Bag Roll Making Machine With
Slit-Seal & Semi-Auto Turret Winder

SF1250-4R



Features:
* Machine Specially Designed with Four Servo System Allows Long Film Accuracy Delivery and Sealing
   Time Extension.
* Precise Electric Dwell Time Control Ensures Consistent Sealing Independent of Line Speed  Variation.



Model	Suitable Material	Finish Production Width	Max. Bag Length	Thickness of Film	Max. Speed	Paper Core Dia.	Hot Slit Seal Device
SF1250-4R	HDPE LDPE LLDPE	200-1200mm	9000mm	0.008-0.1mm	120M/min	φ 1.5”	3

=====================================================================================

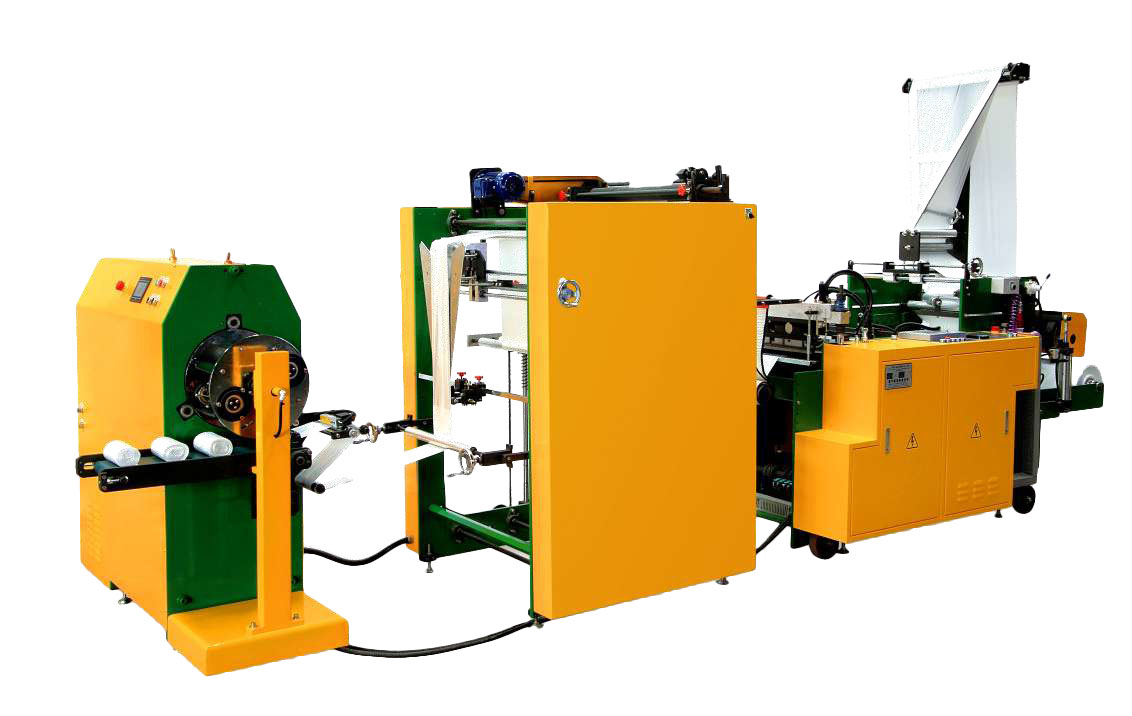

Star-seal Produce Bag and Garbage Bag on Roll Converting System
(Coreless only)

TPG250G, TPG600-2

Table Cover, Produce Bag and Garbage Bag on Roll Converting System (Core and coreless) RB500-SW, RB700-SW



Features:
* Economical Machine capable to make Table Cover, Star-Seal, Garbage Bag and Produce Bag Roll.
* Sealing and Perforation Device is designed for easy maintenance.

Optional Devices:
Triangle folding device, Edge Guide, Rewind with paper cores, Motorized Press Unwind.


Model	Suitable Material	Max. Product Roll Width	Max. Bag Length	Thickness of Film	Max. Speed
TPG250G	HDPE/LDPE/LLDPE	200mm	2000mm	HDPE:0.008-0.035mm LDPE:0.015-0.055mm	100M/min
TPG600-2		250mm x 2			80M/min
RB500-SW		500mm			80M/min
RB700-SW		700mm			80M/min
