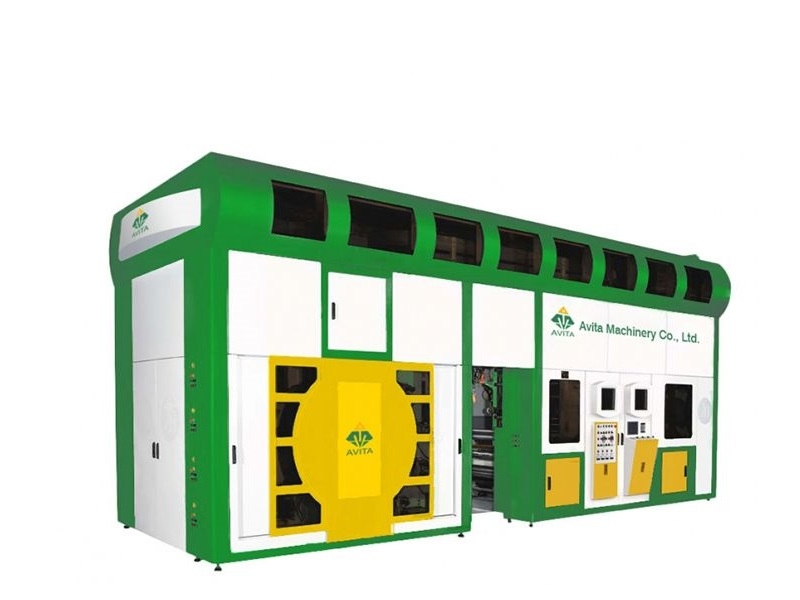

Central Impression Printing Machine
We offer the complete lines of 4 to 6 colors, 600 – 1600mm wide CI printing machine


* Precisely grinded and coated Central Impression drum.
* Dual Wall Drum design with water cooling system to ensure material is smoothly transported
  and precisely printed.
* Heavy-duty cast metal frame provides a steady and vibration free foundation for excellent
  printing job.
* Fine printing adjustment device to ensure printing accuracy at each printing station.
* Feed in and out tension control system with synchronized motioning control ensures constant
  tension during printing.
* Specially designed drying tunnel with blower ensures drying of ink during high speed operation.
* PLC control system with full color user friendly HMI.
* Full servo system with PLC memory module Auto-printing control system can be added to achieve
  high level automation.

Optional Devices:
Quick change over sleeve system, Camera inspection system.

Model Printing Width Film Width Repeat Length Printing Speed Machine Speed
CI-660 580mm 620mm 330 - 890mm 20-300M/min 350M/min
CI-680 780mm 820mm
CI-6100 980mm 1020mm
CI-6125 1230mm 1270mm
CI-6150 1480mm 1520mm
CI-6160 1580mm 1620mm
