Stack Type Flexographic Printing Machine
We offer complete lines of 1 to 6 colors, 600 – 1600mm wide printing machine
PF660~PF6160
PF660~PF6160
 |

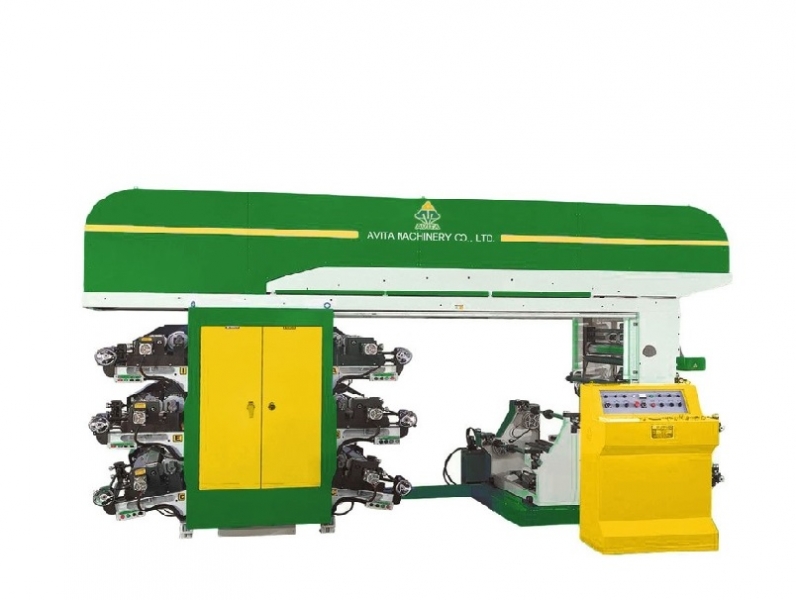

6 Colors Flexographic Printing Machine
Flexo Printing Machine The features as follows:
- Materials suitable for HDPE / LDPE / PP/ FLEXIBLE FILM
- 1 ~ 6 Colors stacking flexographic type, Max. web width
1020mm, Max. printing width 980mm Solid steel frame
design prevents vibration, with high-quality printing
during high-speed operation.
- Stable Automatic Tension Control on both Winder and
Unwinder
- Quick and precise Color Registration System
- Digital Human Machine Interface electrical control
for easy operation & maintenance.
- High-Efficiency Drying System with precise Thermo
Controller makes the fast dry effect.
- Option available on demand of Doctor Blade System,
Camera Inspection facility, Edge Position Controller
for Unwinding & Rewinding.
Please click the video links below to seeing our 6 color Flexo
Printer for you reference!
https://www.youtube.com/watch?v=9IEfhAoWgSQ
( 6 color printer)
https://www.youtube.com/watch?v=6Aot9Szjmxk
( 6 color printer with doctor blade ink system)
https://www.youtube.com/watch?v=CTxrkclJ_dk
( 2 color printer simulate in line test run in factory)
We also manufacture High Performance CI flexo press,
Our High Performance C.I. printer achieved Higher Production,
Low Noise, Stable Performance, More Printing Possibilities (6+6),
and Easier Operation & Maintenance. With above advantages,
now we offer very special prices for our valuable customers.
Please click the video links below to seeing our High Performance
CI Printer for you reference.
https://www.youtube.com/watch?v=lE26Y8i5LaM
(8 color CI printer)
https://www.youtube.com/watch?v=9seStxuzB14&t=3s
(8 color gear-less CI printer)
Please refer following features about our CI printer:
Features:
■ Max. Speed: 300 Meter/ min.
■ Quick and Easy Registration System
■ Fully Automatic Tension Control System on Both Winder
and Unwinder
■ Durable, Silent & Easy Maintenance of Driving System
■ Dryers Are within Precise Thermo Controller Within
Printing Station and After Station.
■ Film Reversible: 6 Colors Printer can print 6 colors on
both sides. (6+6)
■ High Capacity of Heaters for Printing Section and After
Printing Section
Act now on our special promotion program to gain process
efficiencies that translates directly to profits!
If you would like to receive additional information of our products,
please visit our website: www.avitaplas.com or send your inquiries
directly to our mail box : service@avitaplas.com
the printer specifics as below table:
| Model | Printing Width | Film Width | Repeat Length | Printing Speed | High Speed Model |
| PF660 | 580mm | 620mm |
258*892mm |
20-80M/min |
PF660H ~ PF6160H Max. Printing Speed:200M/min |
| PF680 | 780mm | 820mm | 20-80M/min | ||
| PF6100 | 980mm | 1020mm | 20-80M/min | ||
| PF6125 | 1230mm | 1270mm | 20-80M/min | ||
| PF6150 | 1480mm | 1520mm | 20-70M/min | ||
| PF6160 | 1580mm | 1620mm | 20-70M/min |
Others: Contact us for more information about 2,4,6,8 colors.
High Speed / High Quality / High Performance 6 Color Flexo.
Printing Machine with Doctor Blade Ink System
PF-SH / Super High Speed 6 Color Flexo. Printing Machine
with Doctor Blade Ink System
